Additional information
| Weight | 45 kg |
|---|

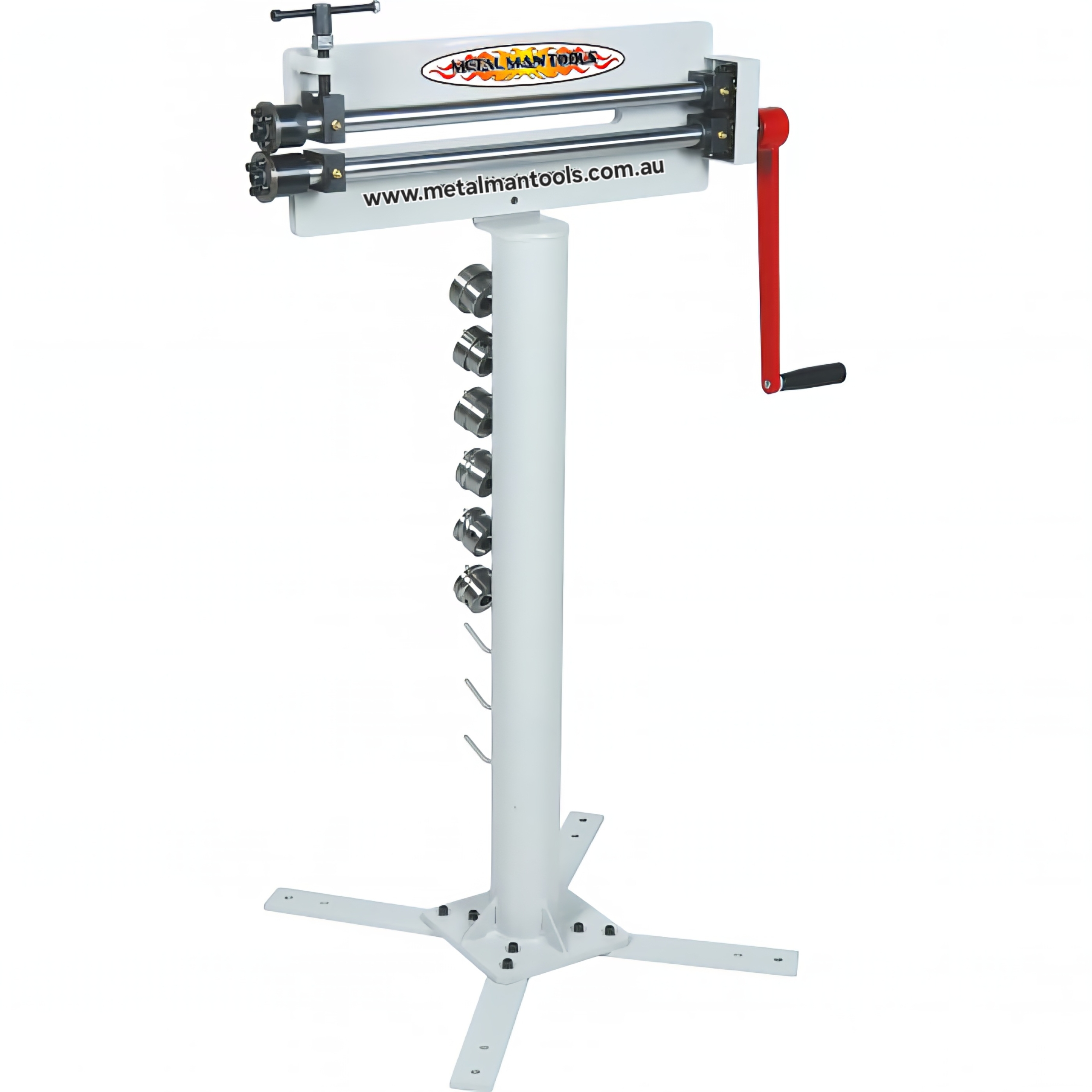

Bead Roller – Manual – 460mm Throat – SJ24-D
$370.00
Bead Roller – Manual – 460mm throat – seven mandrels & stand included.
Product update: Electric motor kit available for this model, see separate listing.
This inexpensive Bead Roller features a large 460 mm throat depth, six rollers and a stand with a die rack, a great Bead Roller for home or the small fab shop..
Features: Thick steel frame, large 25mm shafts, steel gears, greaseable longlife bushes, a variety of mandrels, will roll up to 1.2mm steel and 1.6mm aluminium.
SJ-24D – Bead Roller
1.2mm Mild Steel Thickness Capacity & 470mm Throat Depth
Includes 7 Sets Of Rolls, Now Includes Shearing Rolls
Overview
The SJ-24D bead roller now has been improved & strengthened with thick 16mm steel support plates and it is an inexpensive alternative and perfect solution to having your panels beaded in your home workshop or garage. Made from heavy plate steel and a huge 460mm throat depth making it perfect for strengthening any type of car roof, body panels, seals & guards etc.
This bead roller is manually gear driven by a hand crank that drives both the bottom and top bead rolls. The drive shafts are supported in quality bearing bushes and incorporate greasing nipples for additional protection.
The SJ-24D also includes a stand that also stores the 7 sets of the most common rolls required by any metal forming automotive enthusiasts or professional.
Features
- 1.2mm mild steel capacity for bead & flange rolls
- 1.0mm mild steel capacity for shearing rolls
- Heavy duty steel construction
- Strengthen frame with 16mm steel
- Strengthened stand with 88mm steel pipe
- Ø25mm drive shafts
- Ø22mm spigot for mounting rollers
- Ø54mm bead rollers
- Gear driven system
Includes
- 7 Sets of rolls with Ø22mm bore:
- 1/4″ (6.35mm) single bead roll set
- 3/8″ (9.5mm) single bead roll set
- 1/2″ (12.7mm) single bead roll set
- 1/16″ (1.6mm) flange roll set
- 1/8″ (3.2mm) flange roll set
- 1/4″ (6.35mm) flange roll set
- Shearing roll set
