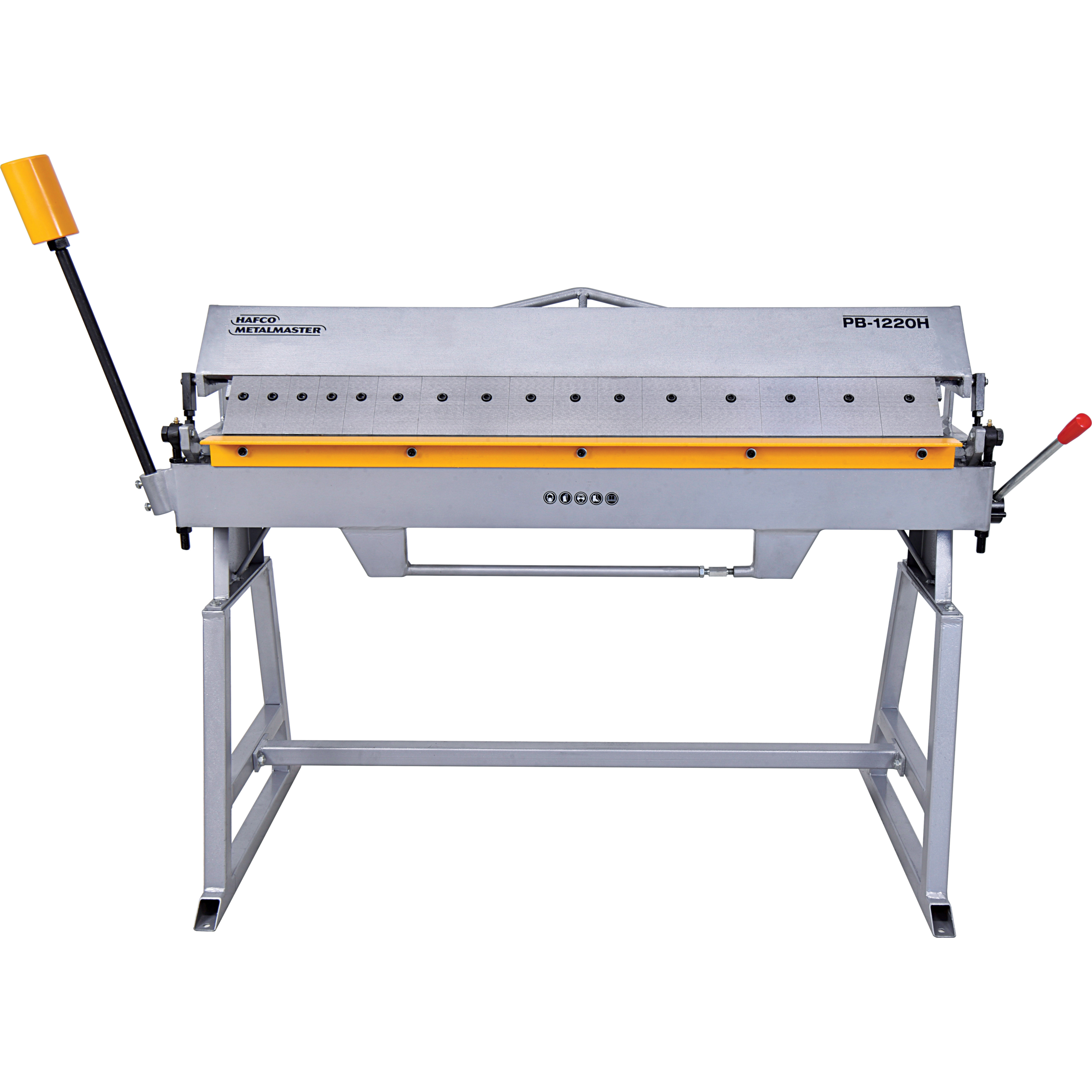

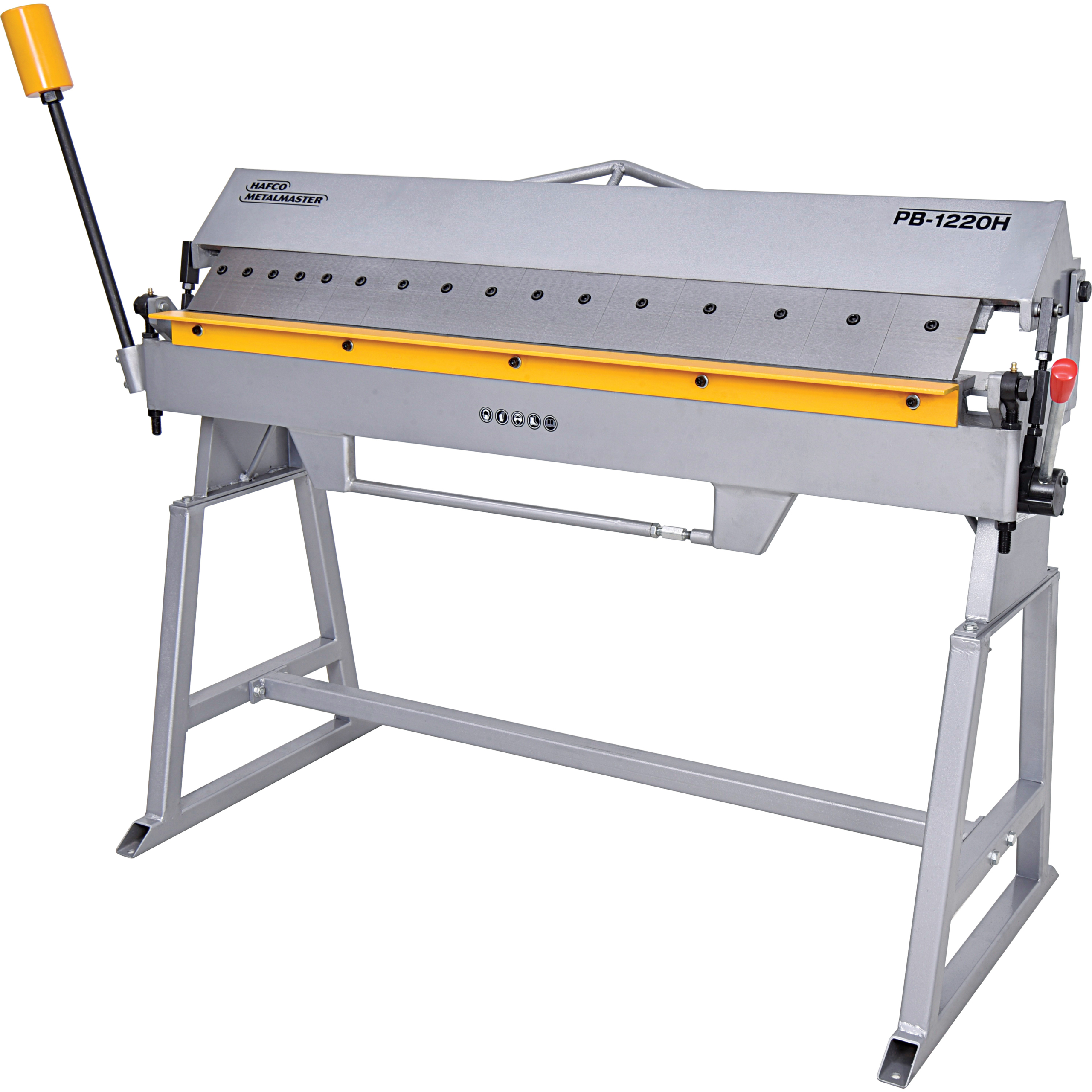

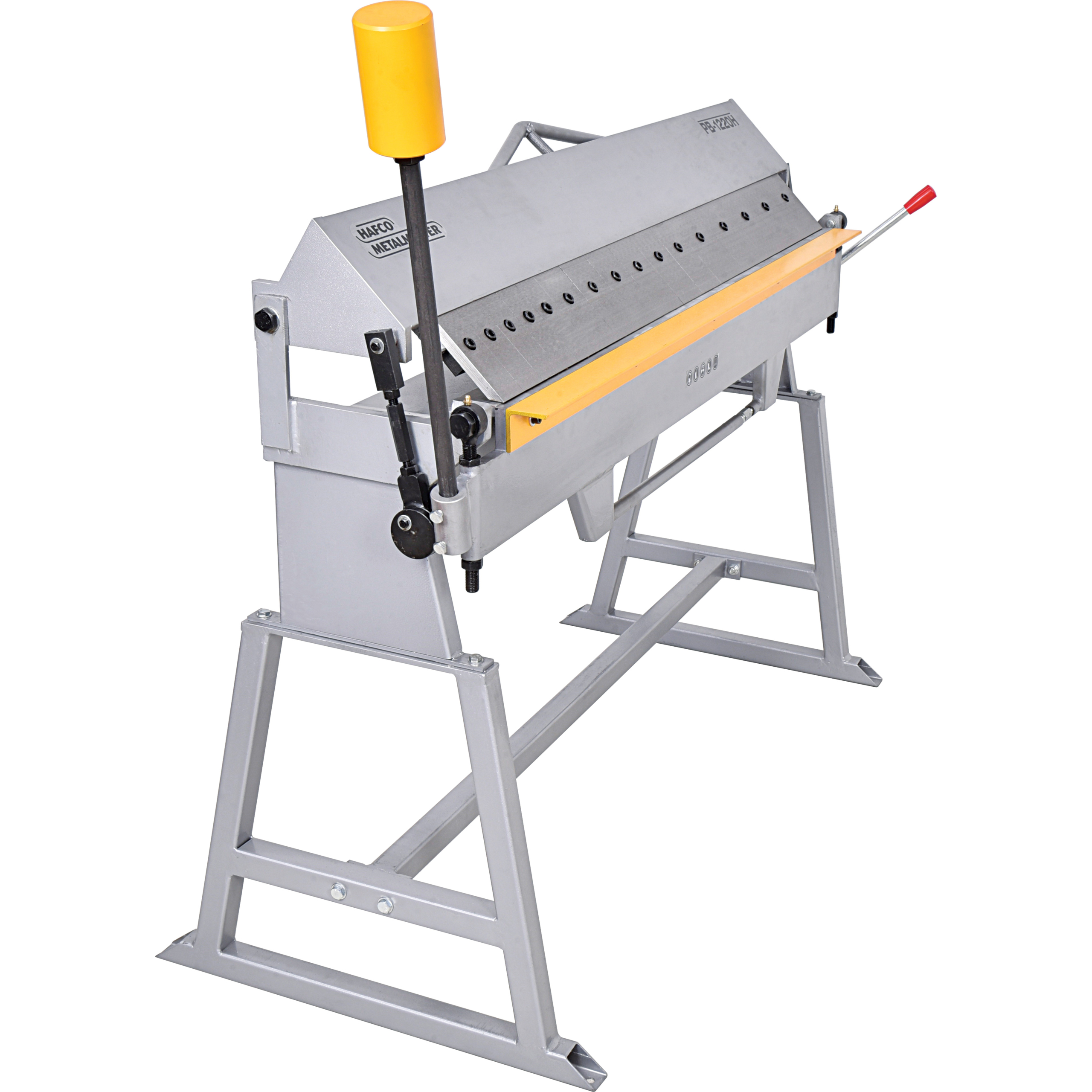

Name: PB-1220H Manual Panbrake Folder
SKU: PB-1220H
Availability: InStock

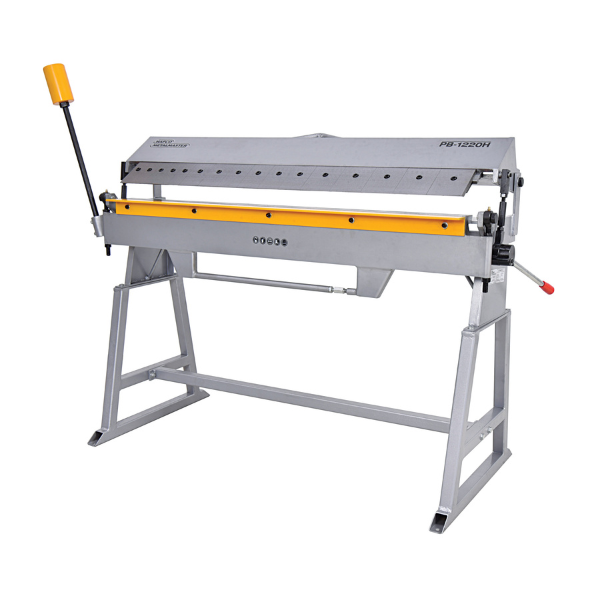

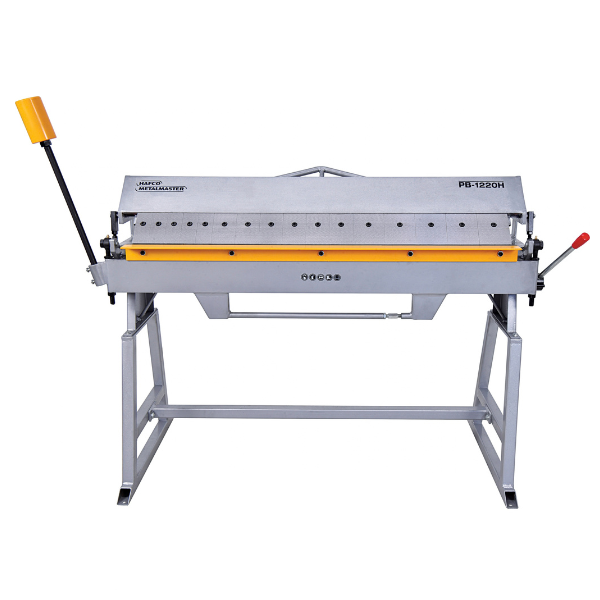

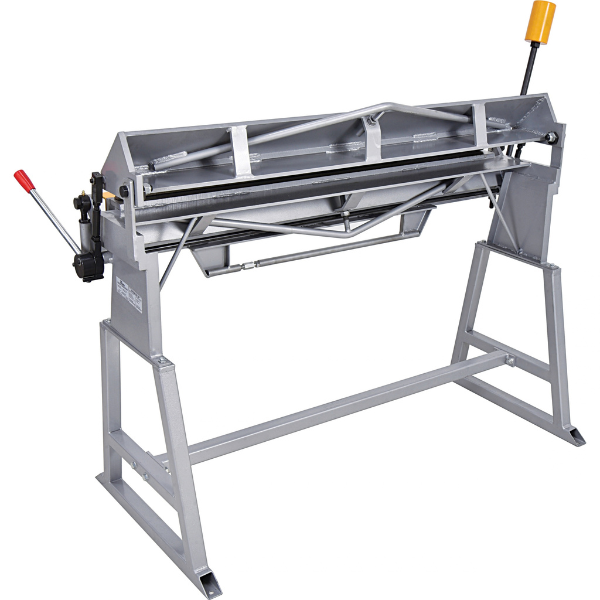

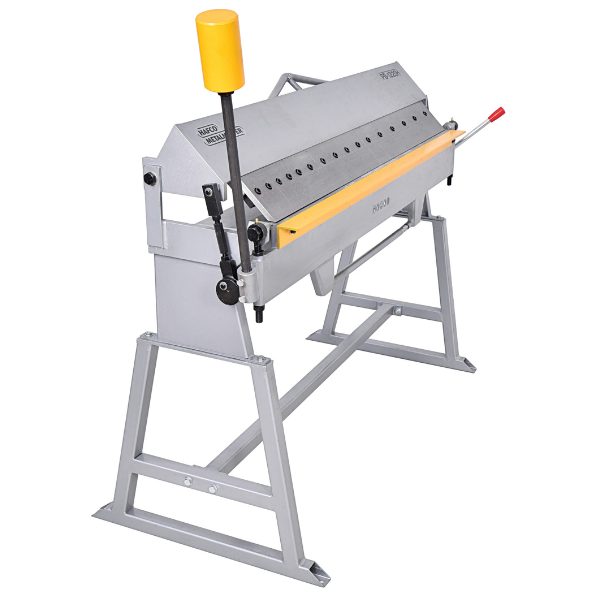

PB-1220H Manual Panbrake Folder

$1,199.00

1220 x 1.2mm Mild Steel Bending Capacity

Greaseable self-aligning bearings on bending pivot point for smoother operation
Heavy steel fabricated construction, 160kg nett weight

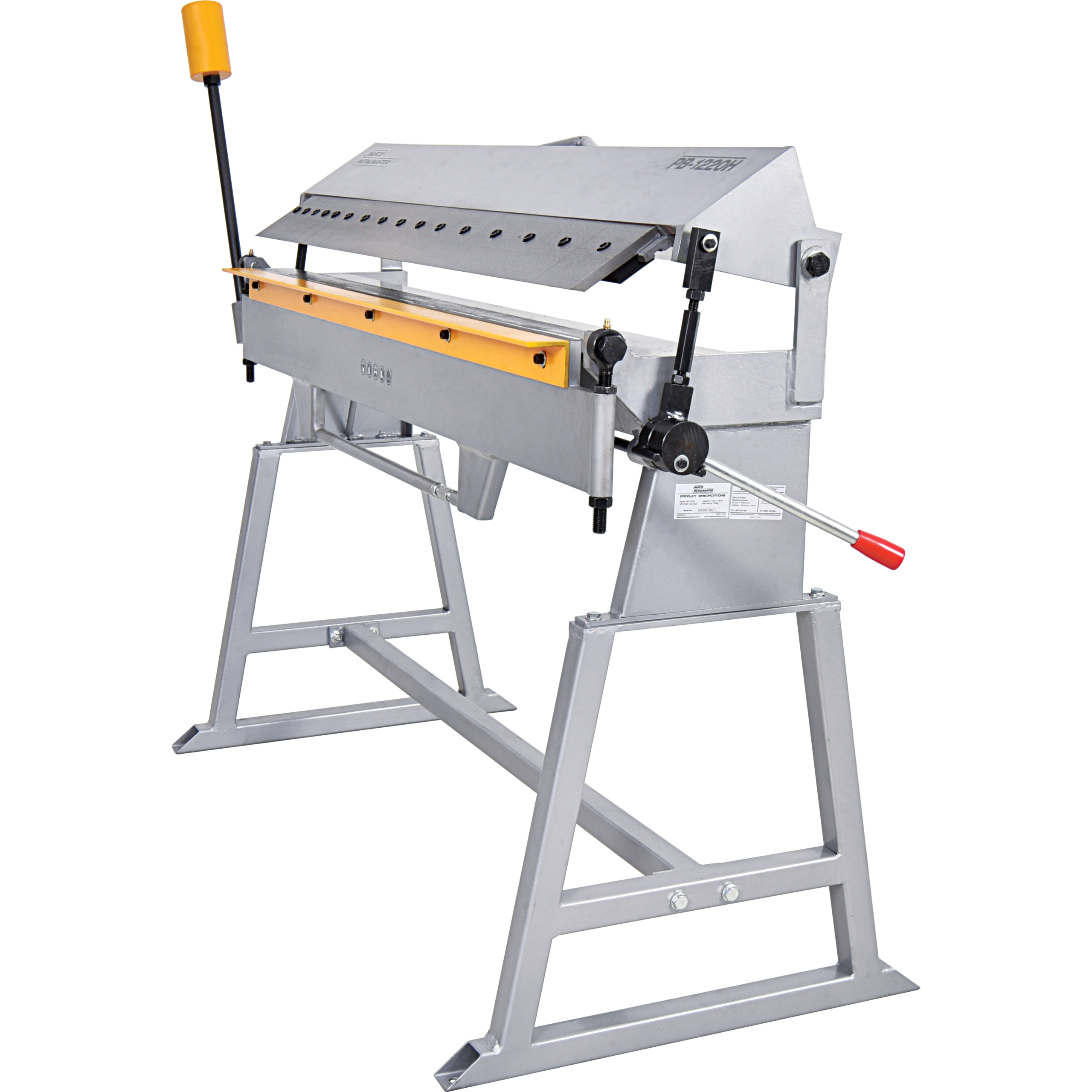

Cam operated adjustment for the top clamping bar to suit differing materials thicknesses

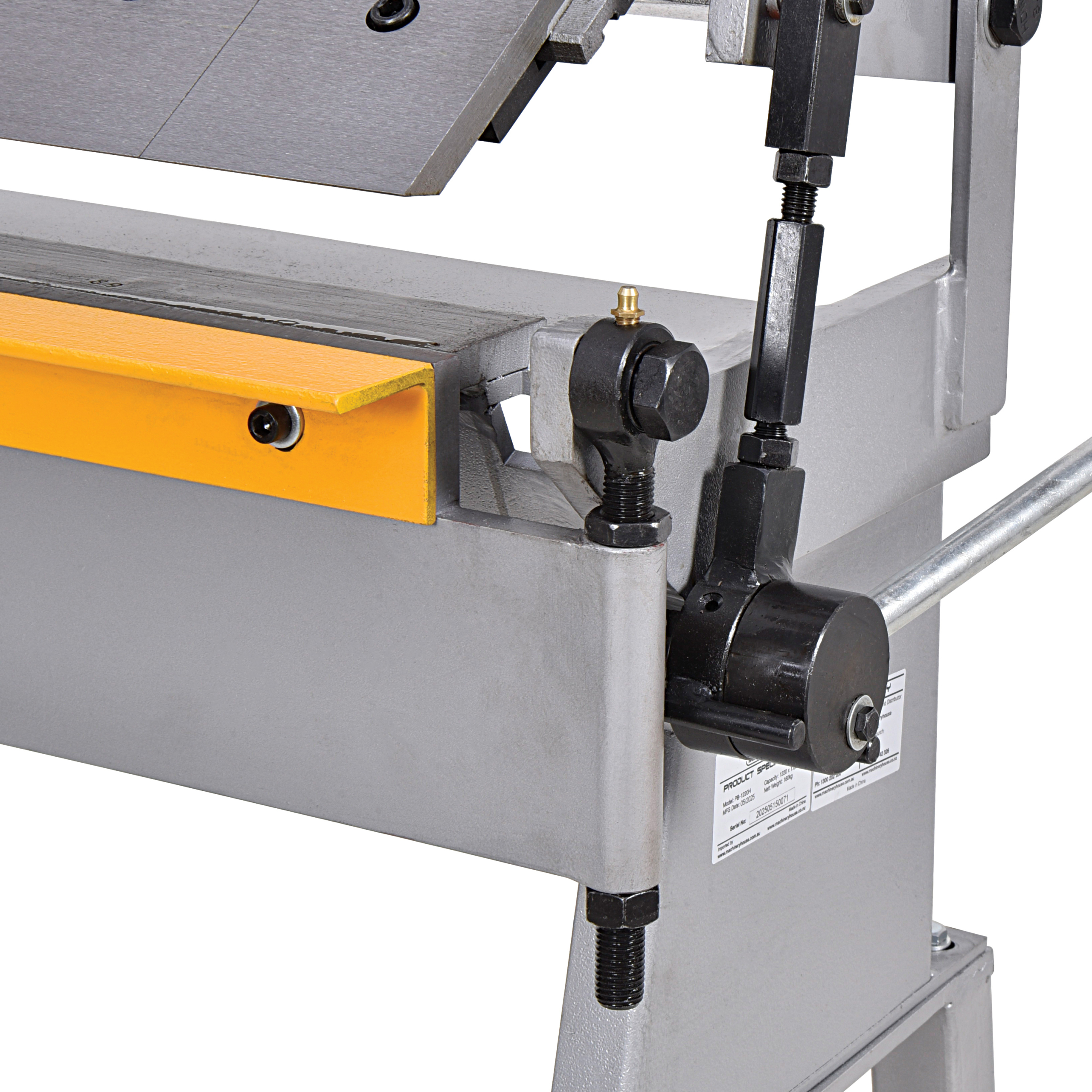

Height adjustable bending apron for bend radius adjustment
Adjustable clamping pressure to prevent distortion during bending

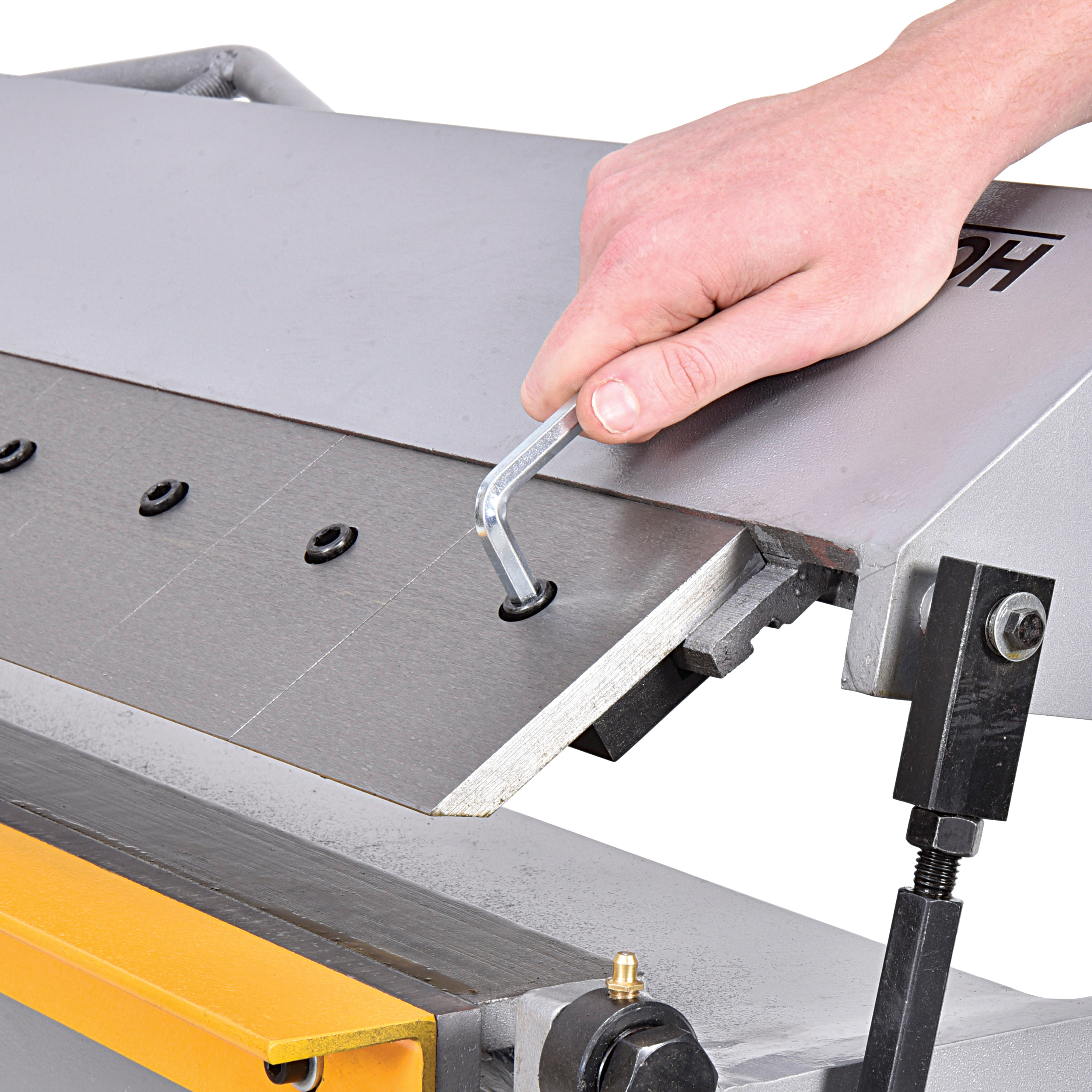

Segmented fingers which include 5pcs of 102mm, 6pcs of 77mm & 5pcs of 50mm for bending of pans or boxes

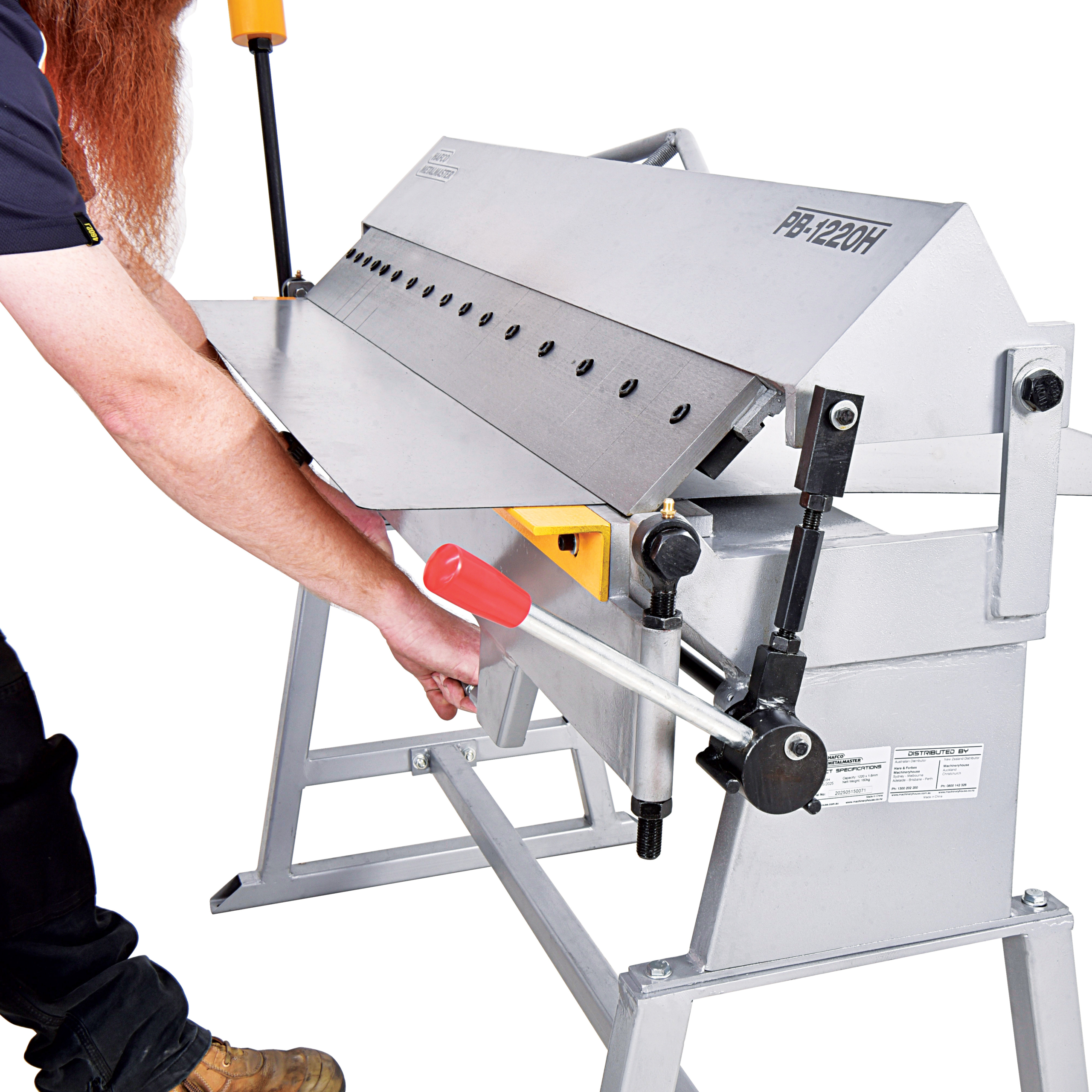

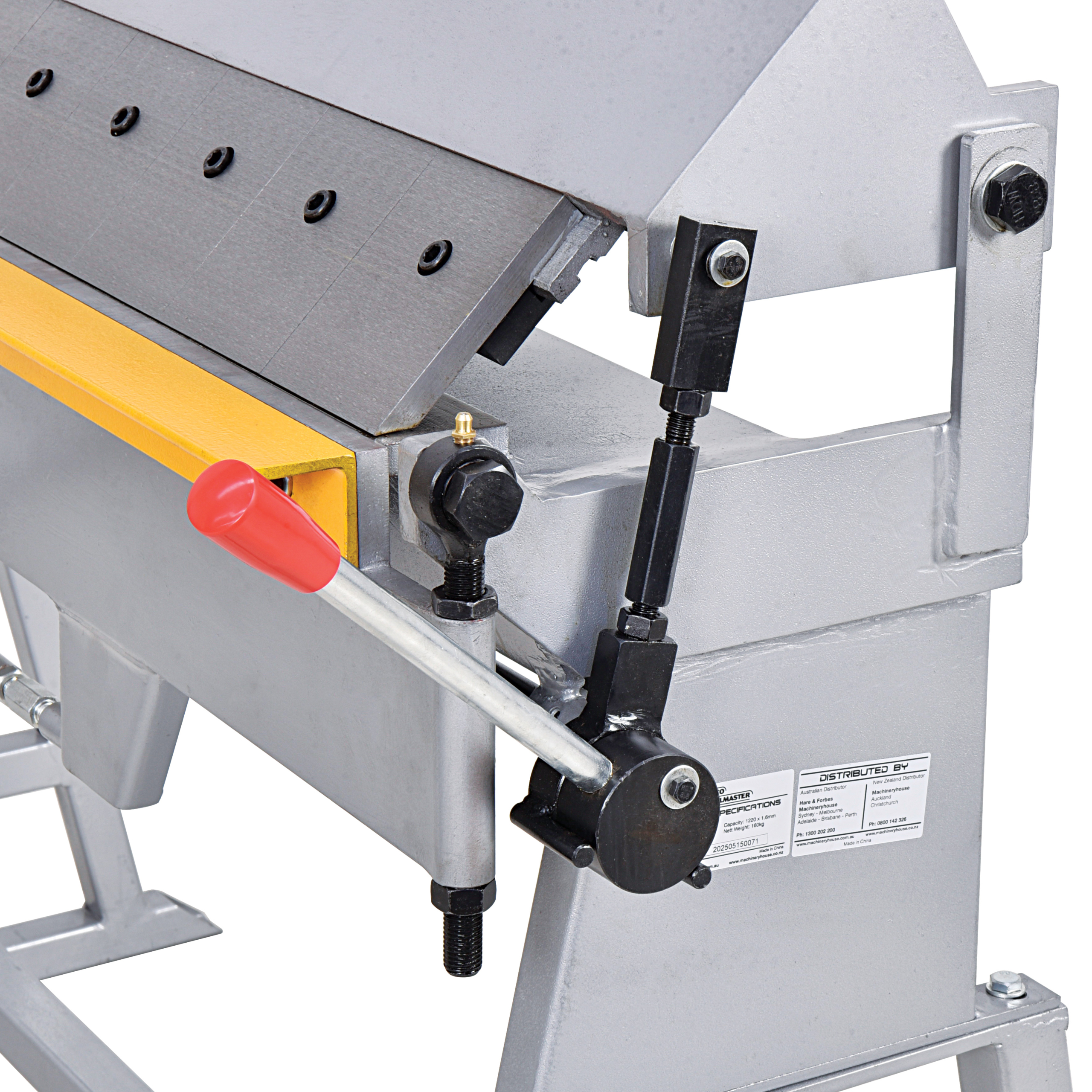

Single handed clamping operation
Bending angle range from 0 – 135°
Mild steel capacity is rated on hot rolled material with 250MPA

Description

The PB-1220H Manual Panbrake Folder is a new floor-mounted model packed with upgraded features for greater versatility and performance.

We fitted the bending pivot point with greaseable self-aligning bearings to deliver smoother, more precise bends. The adjustable bending apron allows quick changes for different bend radii.

We reinforced the machine body with additional material, increasing the total net weight to 160kg. This added strength helps reduce flex during bending for more accurate results.

You can adjust the top clamping bar to suit different materials. The clamping pressure and bar position can also be fine-tuned to achieve the desired bend angle and radius.

If you want a high-quality floor-mounted panbrake with features that stand above the competition, the PB-1220H is an excellent choice.
