POWER HAMMER - PHM560

POWER HAMMER – PHM560

$4,895.00

1.2mm Mild Steel Capacity
560mm Throat Depth
Features
  • Capacity – 1.2mm thick sheet mild steel
  • Quick change tool holder
  • 16mm square Shank Tooling
  • Rigid & Spring Modes
  • Variable speed via inverter control, 0 – 960 blows per minute
  • 560mm throat depth capacity
  • 395mm throat height capacity
  • Foot pedal control with emergency stop
  • Steel fabricated upper frame – 12mm thick plate
  • Steel fabricated lower box section steel frame
  • Drive shafts have bronze bushes & greasing points
  • Adjustable heavy duty single arm length stop with 1 round roller & guide fence
  • Safety magnetic power switch
  • Steel dies made from CR12 steel & hardened
  • Nylon dies made from durable nylon
  • 1.1kW / 1.5hp, 240V motor
Includes
    • 1 x Straight Fence
    • 1 x Contour Roller Guide for concave or convex shapes
    • STEEL DIES
    • 1 x Set of Universal holders (14mm opening) for custom tooling (16mm square shank)
    • 1 x Set of Thumbnail Shrinking Dies (16mm square shank)
    • 1 x Set of Louvre Dies (16mm square shank)
    • 3 x Sets of Beading Dies (1/4”, 3/8”, 1/2”) (16mm square shank)
    • 1 x Linear Stretching Die (16mm square shank)
    • 1 x Flat Upper Hammer Die (16mm square shank)
    • 1 x Set of Round Die Holders Ø20 x 20mm (16mm square shank)
    • 1 x Set of 3.1″ Doming Dies (Ø20 x 20mm Shank)
    • 16 x Steel Lower Dies – 3/4″, 7/8″, 1″, 1-1/8″, 1-1/2″, 1-7/8″, 2″, 3″, 4″, 5″, 6″ (1/16″ radius edge), 6″ radius (1/4″ radius edge), 8″, 14-1/2″, 24″, 36″ Radius (Ø20 x 20mm Shank)
  • NYLON DIES
  • 1 x Flat Upper Hammer Die (Ø20 x 20mm Shank)
  • 13 x Nylon Lower Dies – 3/4″, 7/8″, 1-1/8″, 1-1/2″, 1-7/8″, 4″, 5″, 6″ (1/16″ radius edge), 6″ (1/4″ radius edge), 8″, 14-1/2″, 24″, 36″ Radius (Ø20 x 20mm Shank)
somdn_product_page
SKU: S228 Category:

Description

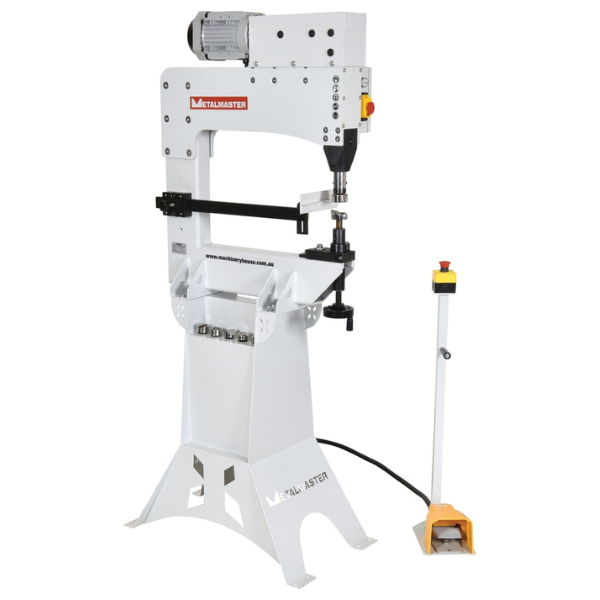

The Power Hammer PHM560 MK2 Metalmaster Electric Power Hammer makes professional metal shaping more affordable. It delivers the features of larger machines without the high price tag.

Switch easily between rigid and non-rigid modes to suit different shaping tasks. This flexibility allows you to tackle a wide range of projects with confidence.

The PHM560 MK2 can shrink, stretch, dome, edge turn, bead, and form louvers. It is ideal for shaping sheet metal for cars, motorcycles, and aircraft panels.

A robust 12mm fabricated steel upper frame provides strength and durability. The machine includes a comprehensive range of CR12 hardened steel dies for shaping steel, plus nylon dies for forming softer metals such as aluminium.

Variable inverter speed control provides up to 960 strokes per minute. The PHM560 MK2 shapes mild steel up to 1.2mm thick and aluminium up to 1.6mm thick.

This versatile machine gives fabricators, restorers, and metal shapers the tools they need to create high-quality panels and components.

You may also like

Radius Gauge RG200

Additional information

Weight195 kg
Dimensions105 × 75 × 112 cm
