English Wheel EWBT-40

1.2mm Mild Steel Capacity

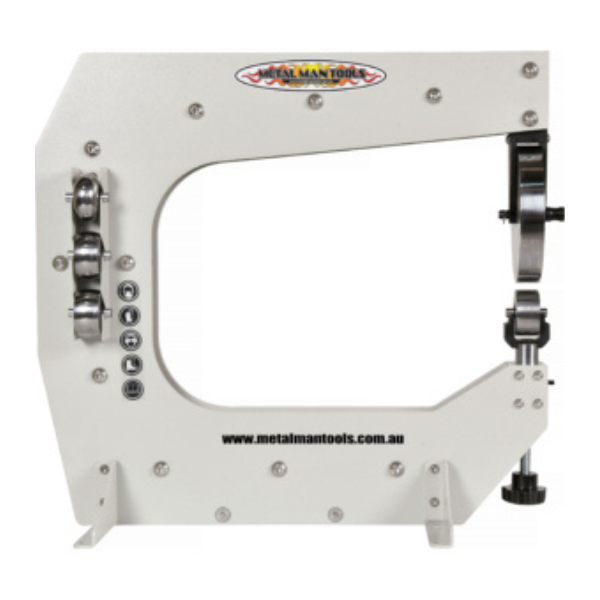

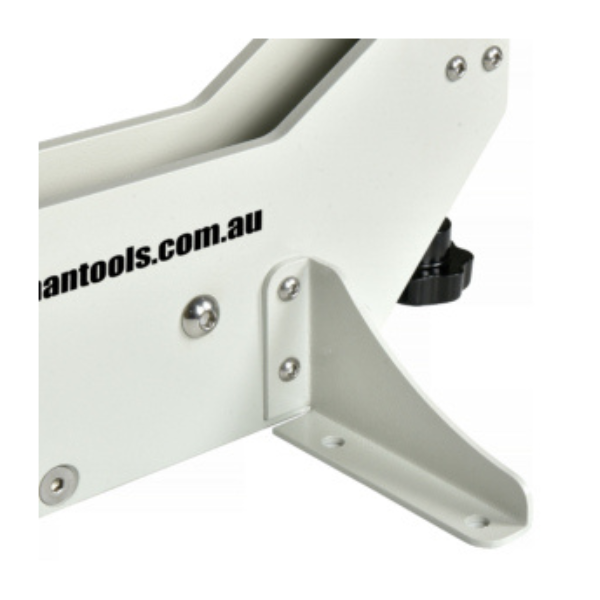

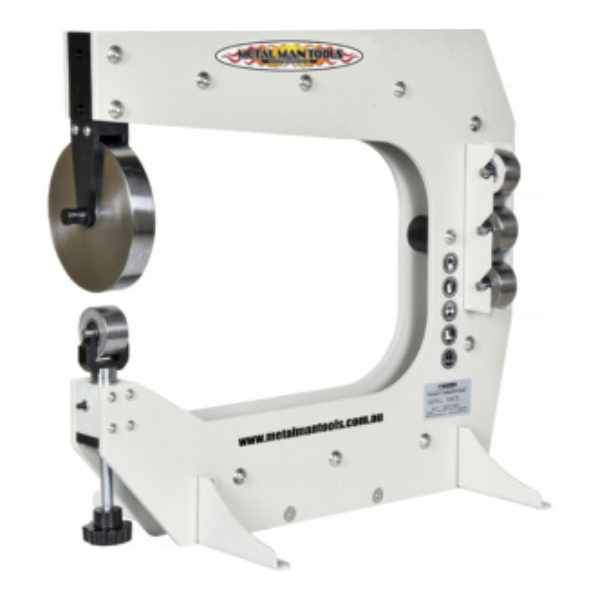

The EWBT-40 is the perfect addition to any metal shapers workshop for all those small or narrow jobs requiring you to get right up to an edge that is not achievable on a larger english wheel. With side frames manufactured from 8mm thick steel plate this is a solid little performer. The frame is designed to be either bench mounted, via the feet or clamped in a bench vice giving you the flexibility to store it away after use. It is capable of shaping mild steel up to 1mm and with a throat of 400mm giving you ample working room yet offering a small compact machine which makes this machine even more versatile. The upper wheel and 7 lower anvils are all hardened to 45-50HRC ensuring a long working life.

Optional Accessory

Radius Gauge RG200

SKU: EWBT-40 Category: English Wheel

Description
Additional information

Description

English Wheel EWBT – 40

Features

400mm throat depth
Heavy duty 8mm thick plate steel side plates

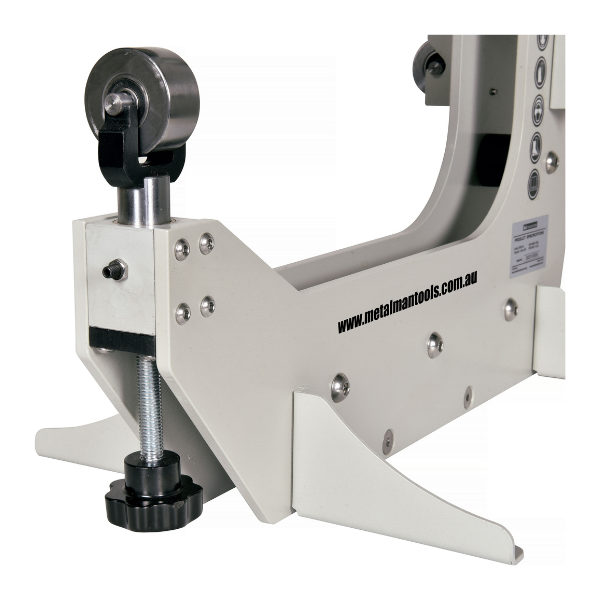

Heavy steel frame spacer at the base for vice mounting
1mm mild steel capacity

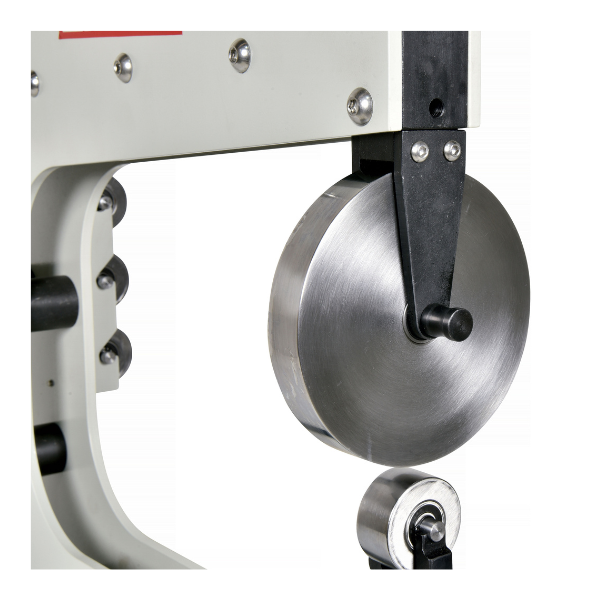

Upper wheel Ø146 x 25.4mm wide
Wheel & anvils hardened to 45-50HRC

Includes

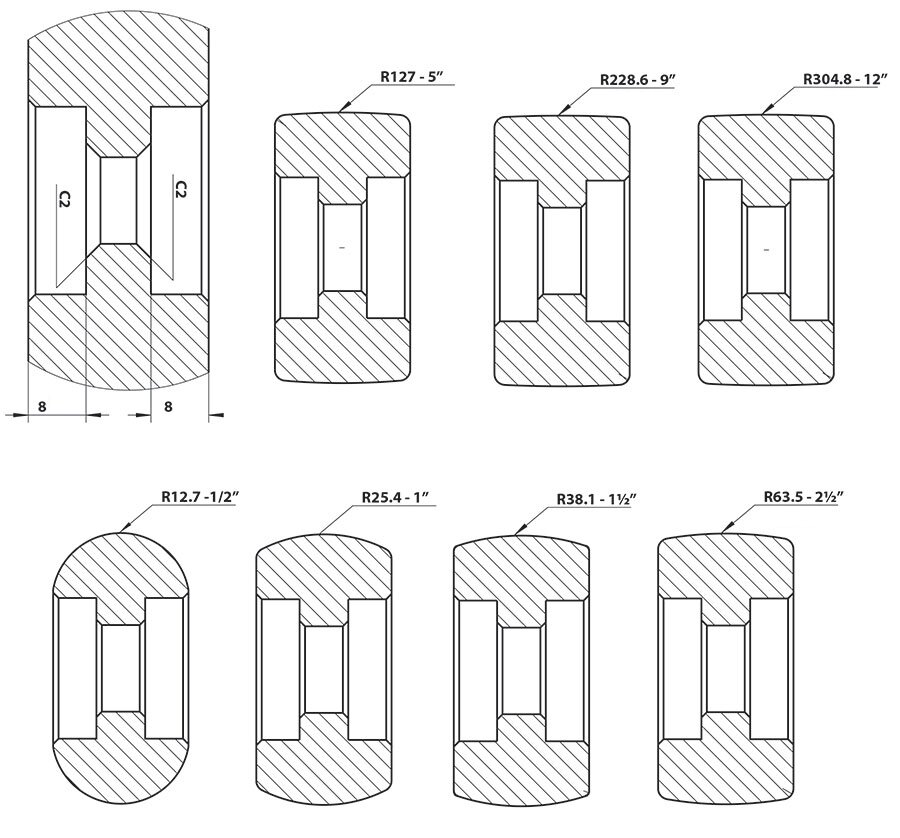

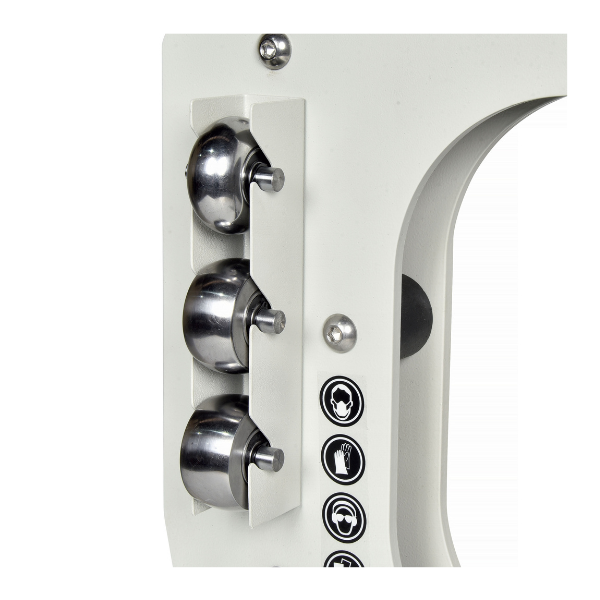

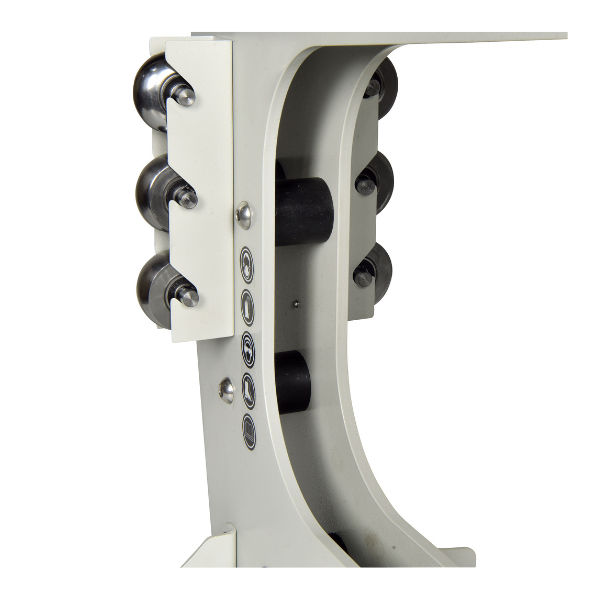

7 lower anvils (all 24.5mm wide) in the following radius:
12.7mm (1/2″)
25.4mm (1″)
38.1mm (1-1/2″)
63.5mm (2-1/2″)
127.0mm (5″)
228.6mm (9″)
304.8mm (12″)

Optional Accessory

Radius Gauge RG200

Additional information

Weight	34 kg
