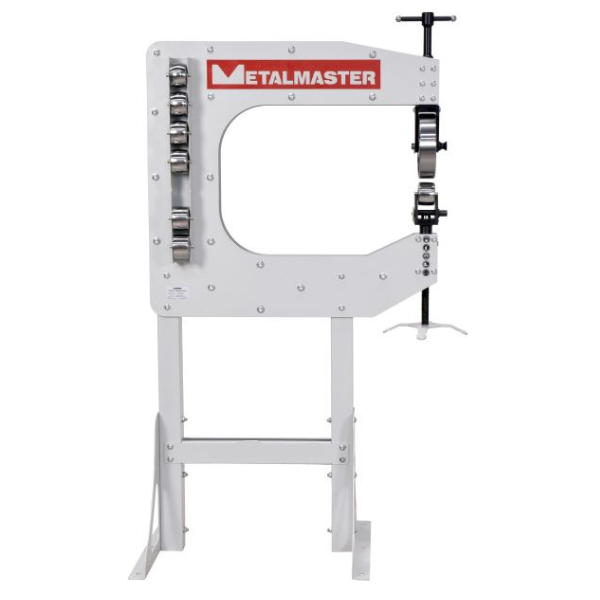

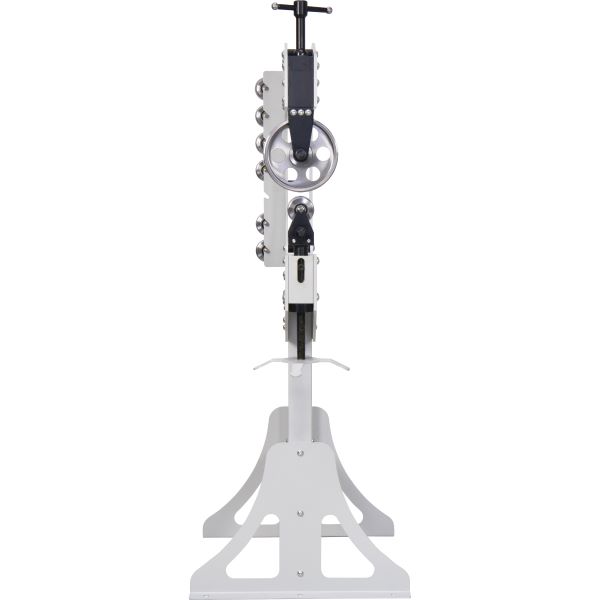

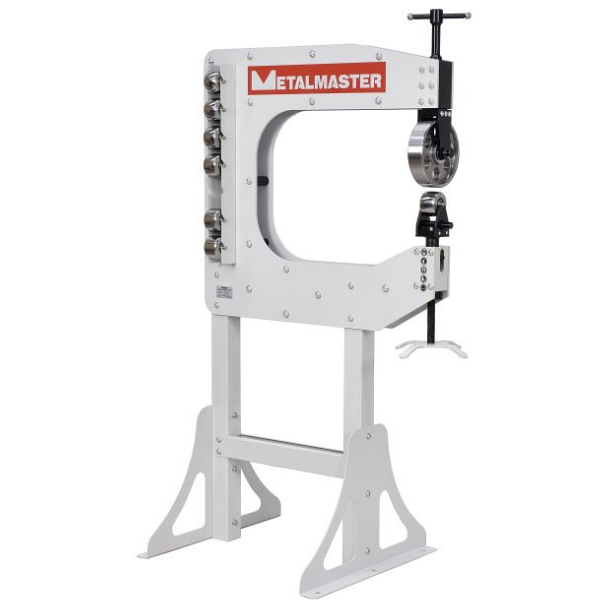

English Wheel EWHD-65

The New Metalmaster EWHD-65 has been designed as the “Little Brother” of our EWHD-80 English Wheel to give you the rigidity of a steel plate design machine at an economical price. With side frames manufactured from 8mm thick steel plate & heavy steel tube legs giving the EWHD-65 the right mix of rigidity & practicality for the craftsman wanting that higher level of finish and control while metal shaping. It is capable of shaping mild steel up to 1.6mm (16 gauge) and with a throat of 650mm giving you ample room to shape medium size panels. The upper wheel and 7 lower anvils are all hardened to 45-50HRC ensuring longer life and with a quick release anvil cradle for rapid and easy panel removal it makes this machine even more versatile.

Optional accessories – Nylon Lower Anvil sets & Urethane Bands are perfect when shaping aluminium or material requiring a mirror finish eg. Stainless Steel.

• 650mm throat depth
• 1.6mm mild steel capacity

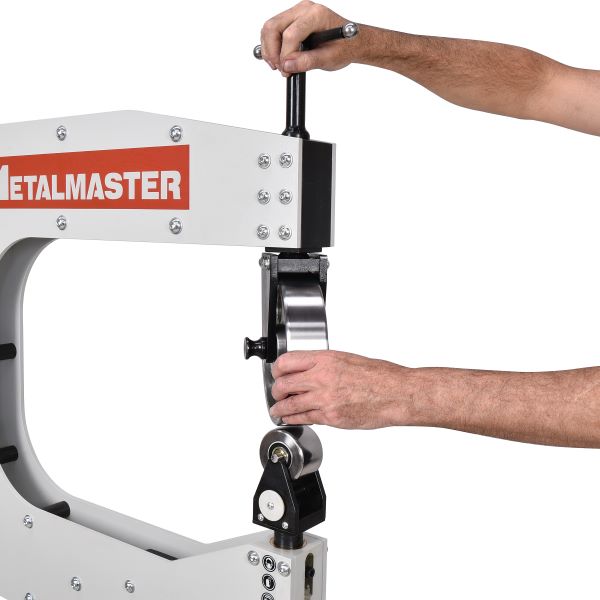

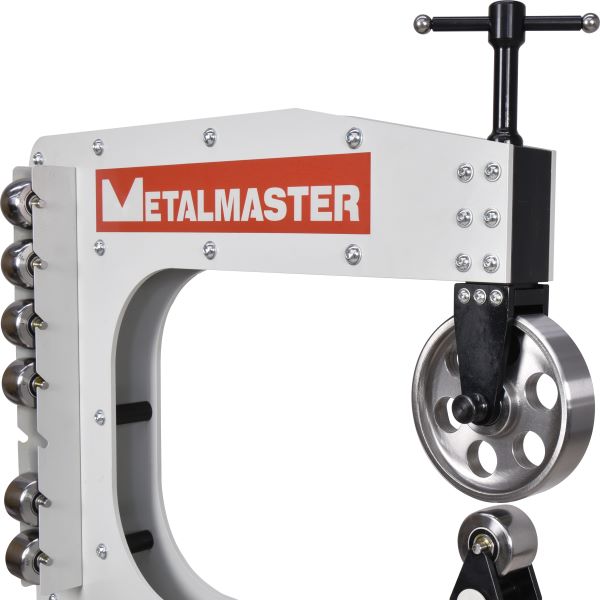

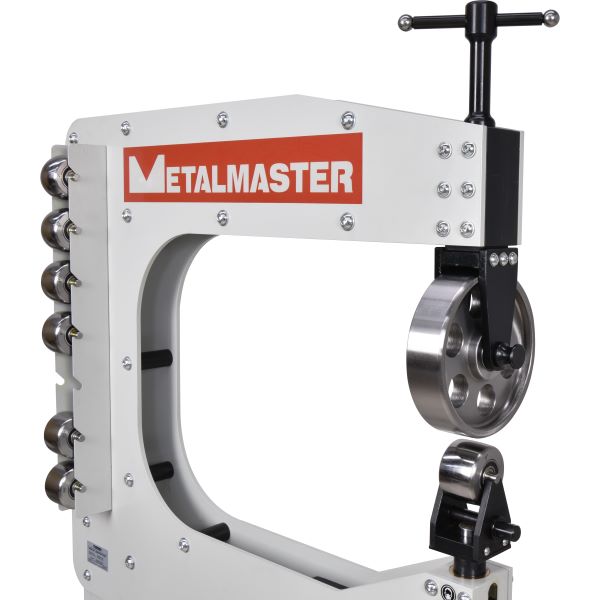

• Upper wheel Ø203 x 50.8mm wide
• Comes with 7 lower anvils (all 50.8mm wide) in the following radius: flat, 50.8, 76.2, 101.6, 152.4, 203.2, 304.8mm

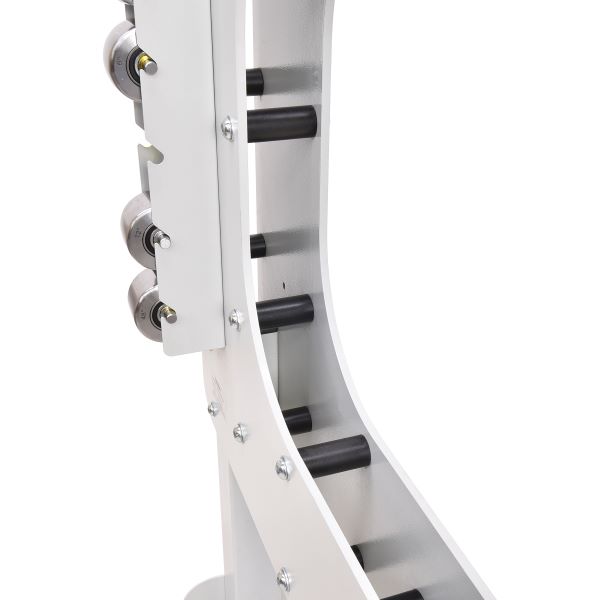

• Heavy duty steel frame using twin 8mm plates for extra rigidity
• Wheel & anvils hardened to 45-50HRC

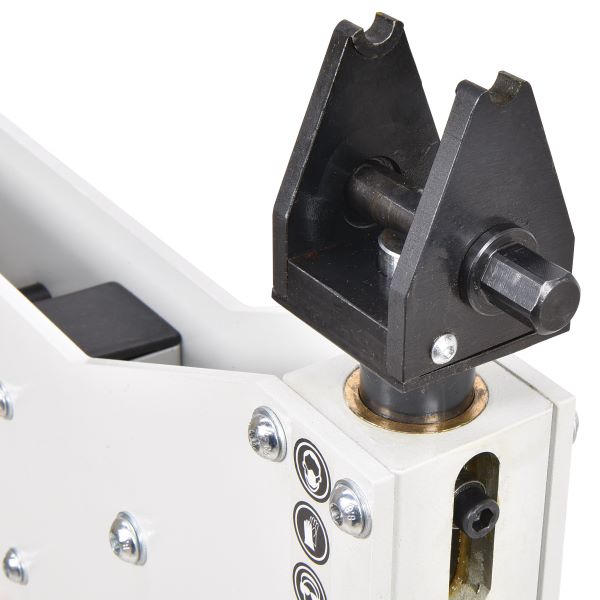

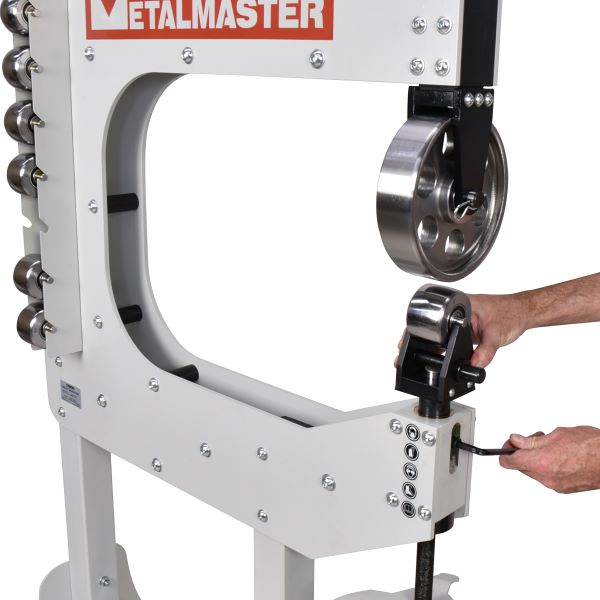

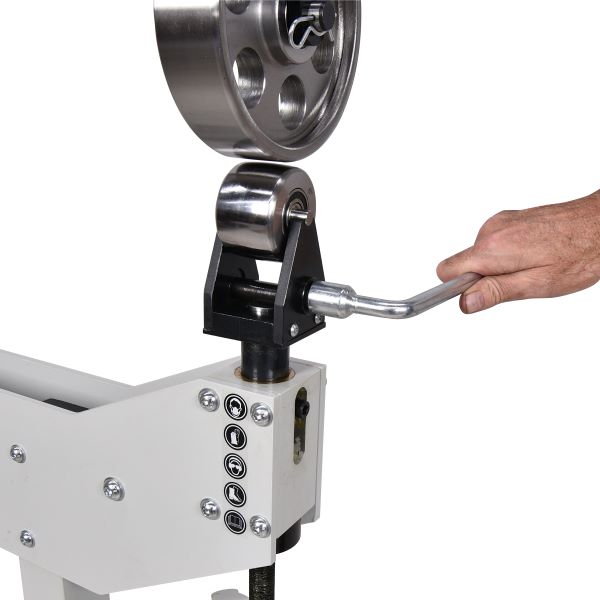

• Quick release anvil cradle for rapid and easy panel removal

• Nylon Lower Anvil sets & Urethane Bands are perfect when shaping aluminium or material requiring a mirror finish eg. Stainless Steel.
